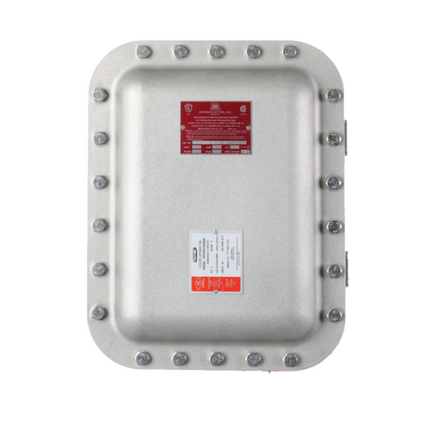

GCL-GH Explosion Proof


The GCL-GH explosion proof operator is designed for high or full lift sectional and rolling doors that have up to 60 cycle/hour duty requirement. Advanced features and robust mechanical design combine to provide a heavyduty operator that sets a new standard in productivity for hazardous location rated operators.

Maximum door height: 24 feet.


  • FM APPROVED. THE FM APPROVED mark, which is backed by scientific research and testing, indicates equipment specified for hazardous locations conforms to the highest standards.

  • The explosion-proof motor is UL Listed and CSA Certified for hazardous location use in areas classified as Class I, Group D and Class II Group F & G.

  • Intrinsically safe design allows use of NEMA 1 control elements such as push-button stations, safety edges, and key switches.

  • 16-character LCD display.

  • Voltage freedom: 115/208/230 VAC or three phase: 208/230/460 VAC models available.

  • Diagnostic LED visual indicators provide real-time status and trouble-shooting assistance.

Standard Features

  • Maximum run timer automatically adjusts to up and down run time.

  • Dynamic motor braking.

  • 2-year/20,000-cycle limited warranty.

  • Heavy-duty worm gearbox for primary reduction in an oil bath.

  • UL 325 momentary contact close compliant.

  • Emergency hoist

  • Open/close/stop and setup keys included on control board.

  • Delay on reverse.

  • 3-button control station.

GCL_MH Dimensions and Amperage.png
Product Information

GCL-GH Explosion Proof Operator Support
