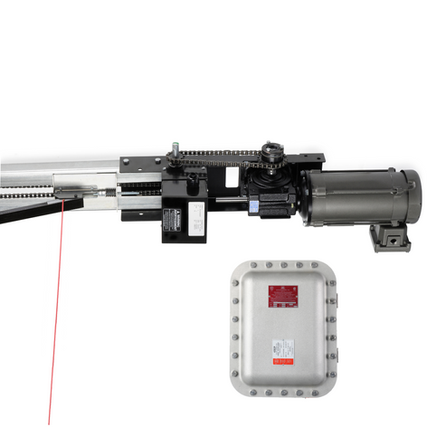

GCL-GT Explosion Proof


The GCL-GT explosion-proof operator is designed for standard-lift sectional doors that have up to 60 cycle/hour duty requirement.

Maximum door height: 24 feet.


  • Dynamic motor braking.

  • Maximum run timer shuts down motor automatically when running time exceeds the time required to run between the limits plus five seconds.

  • Heavy-duty worm gearbox for primary reduction.

  • Delay on reverse.

  • UL 325 momentary contact close compliant.

  • 3-button control station.

  • 2-year/20,000-cycle limited warranty.

  • Drawbar disconnect for emergency manual release.

  • Timed close enables door to automatically close after user-defined time delay between two seconds to four minutes.

Standard Features

  • FM APPROVED. The FM APPROVED mark, which is backed by scientific research and testing, indicates equipment specified for hazardous locations conforms to the highest standards.

  • The explosion-proof motor is UL Listed and CSA Certified for hazardous location use in areas classified as Class I, Group D and Class II Group F & G. Hoist unit motors available in ½ horsepower single phase, 1 horsepower three phase and 3 horsepower three phase.

  • Intrinsically safe design allows use of NEMA Type 1 control elements, such as push button stations, safety edges, and key switches.

  • Limit overrun provides overrun adjustment from the down limit to fine tune the door seal to the floor.

  • Cycle counter indicates the number of cycles logged for easy maintenance support.

  • Voltage freedom - Order phase specific operator for the job and have the ability to select the right voltage on the job site. Single phase: 115/208/230 VAC or three phase: 208/230/460 VAC models available.

  • Diagnostic LED visual indicators provide real-time status and trouble-shooting assistance.

  • Open/close/stop and setup keys included on control board.

  • Allows for monitored entrapment protection and momentary operation when used with select edge-sensing devices.

  • Quiet trolley carriage with wear pads.

GCL_MH Dimensions and Amperage.png
Product Information

GCL-GT Explosion Proof Operator Support
