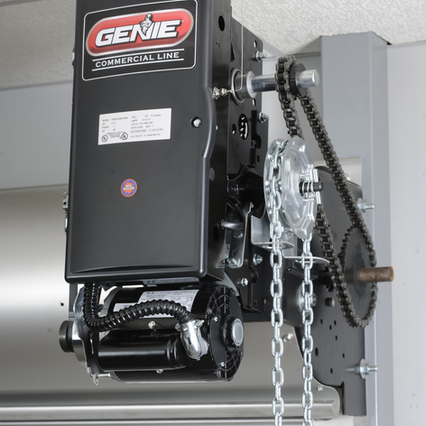

The GCL-H is designed for high or full-lift sectional and rolling doors that have a
30-cycle/hour or fewer duty requirements. Advanced features and robust mechanical design combine to provide a standard-duty operator that sets a new standard for productivity.
MultiVolt® - Order phase-specific operator for the job and have the ability to select the right voltage on the job site.
Single Phase: 115/208/230V AC
Three Phase: 208/230/460V AC
575V AC voltage models available separately
Modular design with optional expansion boards for an advanced timer to close and auxiliary output functionality.
LCD display with intuitive setup menu. Provides current status and trouble-shooting assistance.
Internal receiver with the ability to individually add/delete up to 50 Intellicode® transmitters directly from the LCD display.
EZ Limit® provides for push-to-set limits that stay synchronized with door through a long-term loss of power.
TensiBelt® primary drive reduction eliminates the need to adjust belt tension.
Open/close/stop and setup keys included on the control board. Keeps all controls near the LCD display convenient for set up.
EZ Limit® electro-mechanical limits.
MultiVolt® voltage simplification.
Max run timer automatically adjusts to up and down run time.
TensiBelt® primary reduction.
Delay on reverse.
16-character LCD display.
UL 325 2010 approved.
Advanced radio receiver displays and stores activation by transmitter ID number on the LCD screen.
3-button control station.
2-year/20,000 cycle warranty.
Emergency hoist for manual operation; available in right or left hand.
UL 325 2010 APPROVED
Allows for monitored entrapment connections for protection and momentary operation when used with select photo eyes and/or edge-sensing devices.
Motor: AC continuous-duty motor. Motor replaceable without changing limits. Thermally protected.
Drive: Primary - TensiBelt® auto tensioning poly-V J-belt. Secondary - Chain and sprocket reduction.
Brake: 24V DC disc brake standard.
Friction Clutch: Adjustable clutch to help protect against door and operator damage.
Precision Radial Ball Bearings: Included in critical areas throughout the powertrain.
Emergency Hoist Manual Operation: Electrically interlocked manual hoist with floor level disconnect.
Pre-wired to accept: Monitored entrapment device such as photo eyes. Single or 3-button control stations. External interlock switches.
On-Board Timed Closed: Set via LCD display from 2 seconds to 5 minutes.
Accessories and Options
Timer to Close Module: Timed close set via the LCD display from 2 seconds up to 5 minutes. Includes pre-close warning contacts, timer hold input, auxiliary open input, normally closed safety input, and monitored edge input.
Auxiliary Output Module: Provides relay contacts at the open, close, and mid-stop limits. Contacts for 5-minute lamp, and "ADA" contacts set via LCD display to warn during opening, closing or both.
Intellicode® Transmitters: Available in single up to four button, or open/close/stop models.
Environmental Modifications: TENV and TEFC motors and/or NEMA 4 and NEMA 4X available to be ordered from the factory.
UL 325 2010 Approved Reversing Devices: The installation of a monitored external entrapment device is required for momentary contact close operation on all commercial door operators. Only the following devices, when purchased through Genie, are UL-approved for use to meet this requirement:
Safe-T-Beam® Photoeye Kit with adjustable bracket P/N 38176R.S¹
Impact-protected Commercial Photoeye Kit P/N OPAKPE2.S
MillerEdge ME/MT/CPT (DC or T3) 2-wire edge sensor. (Must be used with TCM (OPABTCGX.S) or Interface Module (OPAKMEIX.S).)
NEMA 4 Photoeyes P/N OPAKPEN4GX.S
1 — Default device when operator is ordered.
