Professional Line garage door openers from Genie
Genie Company
Professional Line
Integrated Aladdin Connect Models
140V DC motors: Model 4164 (screw drive); Model 4124 (belt/chain drive) Other DC motors: Models 3120, 2128, 1128 (belt/chain drive)
Traditional Models (optional Aladdin Connect add-on kit available)
140V DC motors: Models 4064, 3064 (screw drive); Models 4024, 3024 (belt/chain drive) Other DC motors: Models 3020, 2028, 1028 (belt/chain drive)Integrated Aladdin Connect Models
140V DC MOTORS
Connected Pro Series
Connected Pro Series

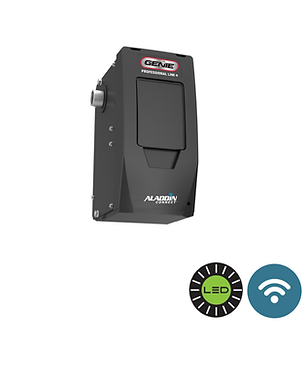

MODEL 4164NEW!
Power, speed, intelligence and convenience
Screw Drive
- Includes integrated Aladdin Connect® smart device system
- Battery Backup available as an option for convenience; required by law in California (Model 4164H-B)
- 140V DC motor with Soft Start & Stop control
- Opening speed: Up to 12.0 in/sec †
- Motion detection lighting
- Limited lifetime motor/screw drive rail warranty**
- 2 light bulbs – Genie LED light bulbs recommended (100 watt max if incandescent bulbs used.)
- Maintenance free screw drive rail
- C-channel rail for strength & aesthetics
- Intellicode® security to stop potential code thieves
- HomeLink® & Car2U® compatible (No external repeater box or bridge needed.)
- Accessories
Connected Pro Series
MODEL 4124NEW!
Quiet yet powerful with the ultimate in convenience
Belt or Chain Drive
- Includes integrated Aladdin Connect® smart device system
- Battery Backup available as an option for convenience; required by law in California (Model 4124H-B)
- 140V DC motor with Soft Start & Stop control
- Opening speed: Up to 9.0 in/sec †
- Motion detection lighting
- Limited Lifetime motor warranty**
- 2 light bulbs – Genie LED light bulbs recommended (100 watt max if incandescent bulbs used.)
- C-channel rail for strength & aesthetics
- Intellicode® security to stop potential code thieves
- HomeLink® & Car2U® compatible (No external repeater box or bridge needed.)
- Accessories
OTHER DC MOTORS
Connected Pro Series
Durable, reliable performance with integrated Wi-Fi connectivity for added security & convenience.
Belt or Chain Drive
- Aladdin Connect® smart device system (Integrated into opener - no additional parts needed.)
- Battery Backup available as an option for convenience; required by law in California (Model 3120H-B)
- DC motor with Soft Start & Stop control
- Opening speed: Up to 7.0 in/sec †
- 15 Year Motor Limited Warranty**
- 2 light bulbs – Genie LED light bulbs recommended (60 watt max if incandescent bulbs used.)
- GenieSense™ monitoring and diagnostic technology
- C-channel rail for strength & aesthetics
- Intellicode® security to stop potential code thieves
- HomeLink® & Car2U® compatible (No external repeater box or bridge needed.)
- Accessories
ReliaG Pro Series
Connected Pro Series
MODEL 2128NEW!
Power, value and reliability.
Belt or Chain Drive
- Aladdin Connect® smart device system (Integrated into opener - no additional parts needed.)
- If Battery Backup is desired for convenience (or as required by law in California), order Model 2128B as 2128 does not have BBU capability
- DC motor
- Opening speed: Up to 7.0 in/sec †
- 10 Year Motor Limited Warranty **
- 1 light bulb – Genie LED light bulb recommended (60 watt max if incandescent bulb is used.)
- C-channel rail for strength & aesthetics †
- Intellicode® security to stop potential code thieves
- HomeLink® & Car2U® compatible (No external repeater box or bridge needed.)
- Accessories
Connected Pro Series
MODEL 1128NEW!
Value and Reliability
Belt or Chain Drive
- Aladdin Connect® smart device system (Integrated into opener - no additional parts needed.)
- If Battery Backup is desired for convenience (or as required by law in California), order Model 1128B as 1128 does not have BBU capability
- DC motor
- Opening speed: Up to 6.5 in/sec †
- 5 Year Motor Limited Warranty **
- 1 light bulb – Genie LED light bulb recommended (60 watt max if incandescent bulb is used.)
- C-channel rail for strength & aesthetics †
- Intellicode® security to stop potential code thieves
- HomeLink® & Car2U® compatible (No external repeater box or bridge needed.)
- Accessories
Traditional Models
140V DC MODELS
TriloG Pro Series
TriloG™ Pro Series
Power, speed, intelligence and convenience
Screw Drive
- Compatible with Aladdin Connect® smart device system
- Battery Backup available as an option for convenience; required by law in California (Model 4064H-B)
- 140V DC motor with Soft Start & Stop control
- Opening speed: Up to 12.0 in/sec †
- Motion detection lighting
- Limited lifetime motor/screw drive rail warranty**
- 2 light bulbs – Genie LED light bulbs recommended (100 watt max if incandescent bulbs used.)
- Maintenance free screw drive rail
- C-channel rail for strength & aesthetics
- Intellicode® security to stop potential code thieves
- HomeLink® & Car2U® compatible (No external repeater box or bridge needed.)
- Accessories
TriloG™ Pro Series
Power, speed, and intelligence
Screw Drive
- Compatible with Aladdin Connect® smart device system
- Battery Backup available as an option for convenience; required by law in California (Model 3064H-B)
- 140V DC motor with Soft Start & Stop control
- Opening speed: Up to 10.0 in/sec†
- Motion detection lighting
- Limited lifetime motor/screw drive rail warranty**
- 2 light bulbs – Genie LED light bulbs recommended (100 watt max if incandescent bulbs used.)
- Maintenance free screw drive rail
- C-channel rail for strength & aesthetics
- Intellicode® security to stop potential code thieves
- HomeLink® & Car2U® compatible (No external repeater box or bridge needed.)
- Accessories
IntelliG Pro Series
IntelliG® Pro Series
Quiet yet powerful with the ultimate in convenience
Belt or Chain Drive
- Compatible with Aladdin Connect® smart device system
- Battery Backup available as an option for convenience; required by law in California (Model 4024H-B)
- 140V DC motor with Soft Start & Stop control
- Opening speed: Up to 9.0 in/sec †
- Motion detection lighting
- Limited Lifetime motor warranty**
- 2 light bulbs – Genie LED light bulbs recommended (100 watt max if incandescent bulbs used.)
- C-channel rail for strength & aesthetics
- Intellicode® security to stop potential code thieves
- HomeLink® & Car2U® compatible (No external repeater box or bridge needed.)
- Accessories
IntelliG® Pro Series
Quiet yet powerful performance
Belt or Chain Drive
- Compatible with Aladdin Connect® smart device system
- Battery Backup available as an option for convenience; required by law in California (Model 3024H-B)
- 140V DC motor with Soft Start & Stop control
- Opening speed: Up to 7.5 in/sec †
- Limited Lifetime motor warranty**
- 2 light bulbs – Genie LED light bulbs recommended (100 watt max if incandescent bulbs used.)
- C-channel rail for strength & aesthetics
- Intellicode® security to stop potential code thieves
- HomeLink® & Car2U® compatible (No external repeater box or bridge needed.)
- Accessories
OTHER DC MOTORS
Connected Pro Series
ReliaG® Pro Series
Durable, reliable performance.
Belt or Chain Drive
- DC motor with Soft Start & Stop control
- Opening speed: Up to 7.0 in/sec †
- Battery Backup available as an option for convenience; required by law in California (Model 3020H-B)
- 15 Year Motor Limited Warranty**
- 2 light bulbs – Genie LED light bulbs recommended (60 watt max if incandescent bulbs used.)
- GenieSense™ monitoring and diagnostic technology
- C-channel rail for strength & aesthetics
- Intellicode® security to stop potential code thieves
- HomeLink® & Car2U® compatible (No external repeater box or bridge needed.)
- Compatible with Aladdin Connect® smart device system
- Accessories
ReliaG Pro Series
ReliaG® Pro Series
Power, value and reliability.
Belt or Chain Drive
- If Battery Backup is desired for convenience (or as required by law in California), order Model 2028B as 2028 does not have BBU capability
- DC motor with Soft Start & Stop control
- Opening speed: Up to 7.0 in/sec †
- 10 Year Motor Limited Warranty **
- 1 light bulb – Genie LED light bulb recommended (60 watt max if incandescent bulb is used.)
- C-channel rail for strength & aesthetics †
- Compatible with Aladdin Connect® smart device system
- Intellicode® security to stop potential code thieves
- HomeLink® & Car2U® compatible (No external repeater box or bridge needed.)
- Accessories
ReliaG® Pro Series
Value and Reliability
Belt or Chain Drive
- If Battery Backup is desired for convenience (or as required by law in California), order Model 1028B as 1028 does not have BBU capability
- DC motor
- Opening speed: Up to 6.5 in/sec †
- 5 Year Motor Limited Warranty **
- 1 light bulb – Genie LED light bulb recommended (60 watt max if incandescent bulb is used.)
- C-channel rail for strength & aesthetics †
- Compatible with Aladdin Connect® smart device system
- Intellicode® security to stop potential code thieves
- HomeLink® & Car2U® compatible (No external repeater box or bridge needed.)
- Accessories
** See Programming, Operation & Maintenance manual for limitations and details.
° When compared to industry standard, 12V motors
† Maximum opening speed +/- 0.5 in/sec.
